2 ميجا بيكسل داهوا شبكي كاميرا داخلية رؤية ليلية 30م عدسة 3.6مم

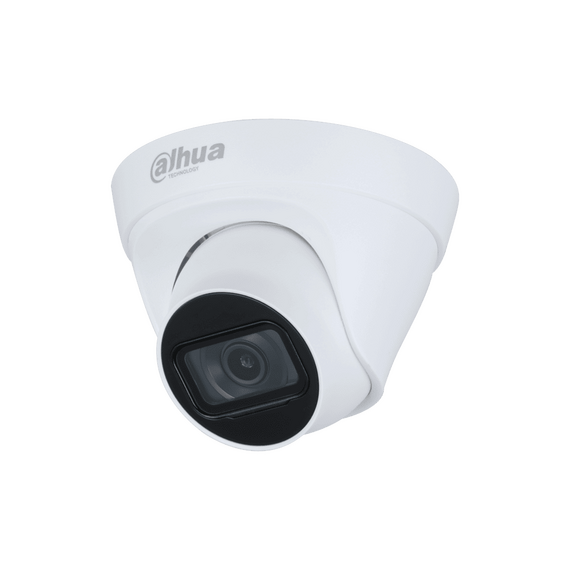

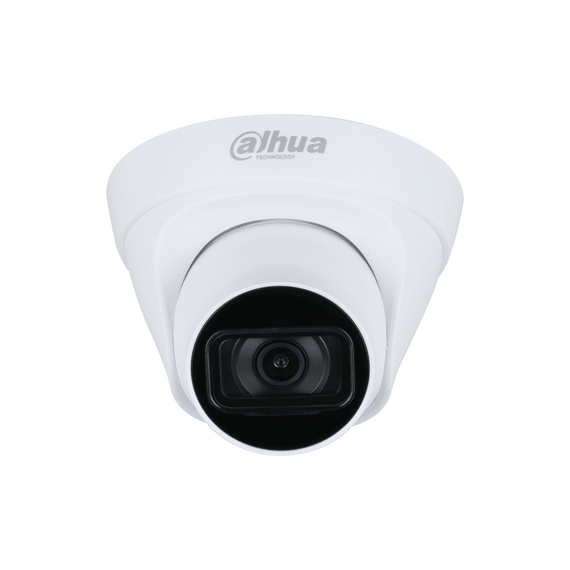

2MP Entry IR Fixed-Focal Eyeball Network Camera (DH-IPC-HDW1230T1-S5)
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in efficient IR illuminator, and the max. illumination distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12V DC/PoE power supply
- IP67 protection
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 16 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 64 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.01 Lux @F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 30 m (98.4 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 1 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0° to 355° Tilt: 0° to 78° Rotation: 0° to 360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | 2.8 mm: F2.0 3.6 mm: F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm | 38.6 m (126.6 ft) | 15.4 m (50.5 ft) | 7.7 m ( 25.3 ft) | 3.9 m (12.8 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 49.7 m (163.1 ft) | 19.9 m (65.3 ft) | 9.9 m (32.5 ft) | 5.0 m (16.4 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+/Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 6 (Total bandwidth: 36 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE Chrome Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95>#/p### | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | -40°C to +60°C (-40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Inner core: Metal + Plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

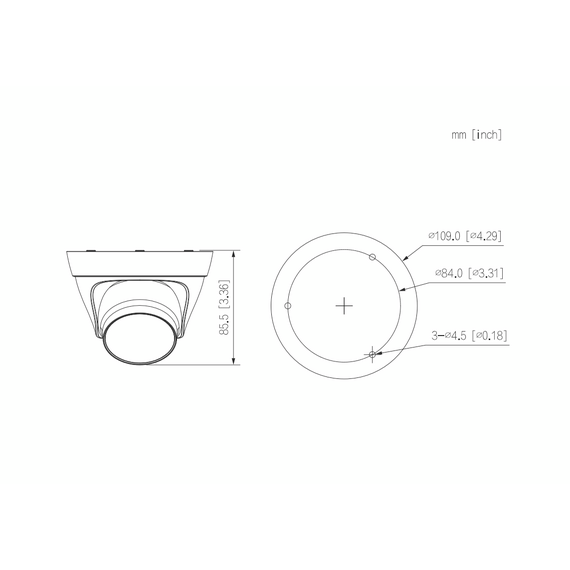

Product Dimensions | 85.5 mm × Φ109 mm (3.4" × Φ4.3") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.24 kg (0.5 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.37 kg (0.8 lb) |
