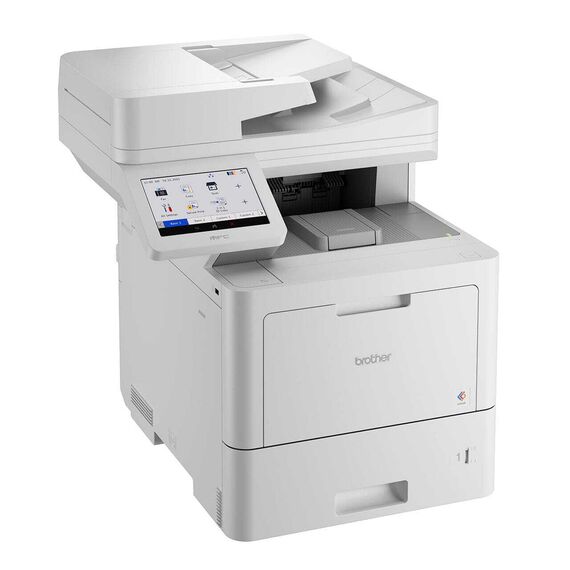

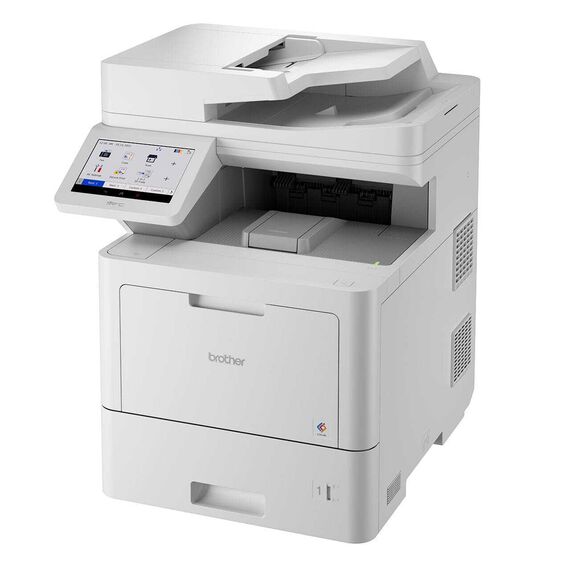

BROTHER MFC-L9630CDN Color Laser Printer Multi-Function

Print | Scan | Copy | Fax

Exceptional all-in-one laser printer for essential business communications

The Brother Color Laser Multi-Function Printer (MFC-L9630CDN) is a high-performance all-in-one printer designed for demanding office environments that require exceptional print, copy, scan, and fax capabilities. This robust device features fast print speeds of up to 50 pages per minute, ensuring efficient handling of large print jobs. The MFC-L9630CDN offers automatic duplex printing to save paper and reduce costs, along with a large standard paper capacity of 550 sheets, expandable to 2,650 sheets with optional trays. The 100-sheet automatic document feeder supports high-volume scanning and copying. The printer is equipped with advanced connectivity options including wireless, Ethernet, and USB, facilitating seamless integration into your office network. The intuitive touchscreen display simplifies operation and management of printer functions. The MFC-L9630CDN is built to handle high-volume tasks reliably and includes advanced security features to protect sensitive information.

Key Features

• Up to 40/42 ppm (A4/LTR)
• Automatic 2-sided (Duplex) Print
• Replaceable Super High-yield Toners
• Integrated NFC Reader
• Paper capacity of standard tray up to 520 sheets plus 100 sheets multi-purpose tray

Basic Specs

• Functions: Fax, Print, Scan, Copy
• Printer Type: Color Laser Printer
• Product Dimensions (Width X Depth X Height): 503 mm × 541 mm × 586 mm
• Weight: 30.1 kg
• Print Speed: A4: Up to 40 ppm / Letter: Up to 42 ppm
• Paper Type: Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper
• Paper Size: A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K, A4 Short
• Maximum Paper Capacity: Up to 520 sheets of 80 gsm plain paper

Print

• Resolution: Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
• 2-Sided (Duplex) - Printing Paper Type: Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
• 2-Sided (Duplex) - Paper Size: A4, A4 Short (270mm Paper), Letter, Legal, Mexico Legal, India Legal, Folio

Paper handling

• Tray #1 - Paper Type: A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
• Tray #1 - Maximum Paper Capacity: Up to 520 sheets of 80 gsm plain paper
• Tray #2 - Paper Type: A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
• Tray #2 - Maximum Paper Capacity: LT-330CL: Up to 250 sheets of 80 gsm plain paper / LT-340CL: Up to 500 sheets of 80 gsm plain paper
• Multi-purpose Tray - Paper Type: Width: 76.2 to 215.9 mm / Length: 127 to 355.6 mm | Envelope: COM-10, DL, C5, Monarch
• Multi-purpose Tray - Maximum Paper Capacity: Up to 100 sheets of 80 gsm plain paper / Envelope; 15 envelopes
• Automatic Document Feeder (ADF) Maximum Paper Capacity: Up to 100 sheets
• Paper Output: Face Down Output Tray: Up to 250 sheets of 80 gsm Plain Paper / Face Up Output Tray: Up to 1 sheet

Copy

• Colour / Monochrome: Yes / Yes
• Multiple Copies: Up to 999 pages
• Enlarge/ Reduce: 25% to 400% (in increments of 1%)
• Resolution: Print: Up to 600 x 600 dpi

Scan

• Resolution - Interpolated: Up to 19,200 × 19,200 dpi (interpolated) (Windows Only)
• Resolution - Scanner Glass: Up to 600 × 600 dpi
• Resolution - Automatic Document Feeder (ADF): Up to 600 × 600 dpi

Fax

• Compatibility: ITU-T Super Group 3
• Modem Speed: 33.6 Kbps
• Memory Transmission: Up to 500 pages (ITU-T Test Chart, JBIG)
• Out of Paper Reception: Up to 500 pages (ITU-T Test Chart, JBIG)

Connectivity

• Connectivity: Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Network

• Wireless Network Security: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) / *Wi-Fi Direct supports WPA2-PSK (AES) only.
• Wireless Setup Support Utility - WPS: Yes

Display & Memory

• Display Type: 7.0" TFT ColorLCD
• Memory Capacity: 2 GB

Operation

• Power Source: 220 V to 240 V AC 50/60 Hz
• Power Consumption - Ready: Approx. 85 W
• Power Consumption - Sleep: Approx. 16.8 W
• Power Consumption - Power Off: Approx. 0.04 W
• Noise Level: 56.5 dB (A)

Supported Operating Systems

• Supported OS: Windows® Server 2008, Server 2008 R2, 7, 8.1, Server 2012, Server 2012 R2, 10, Server 2016, Server 2019
